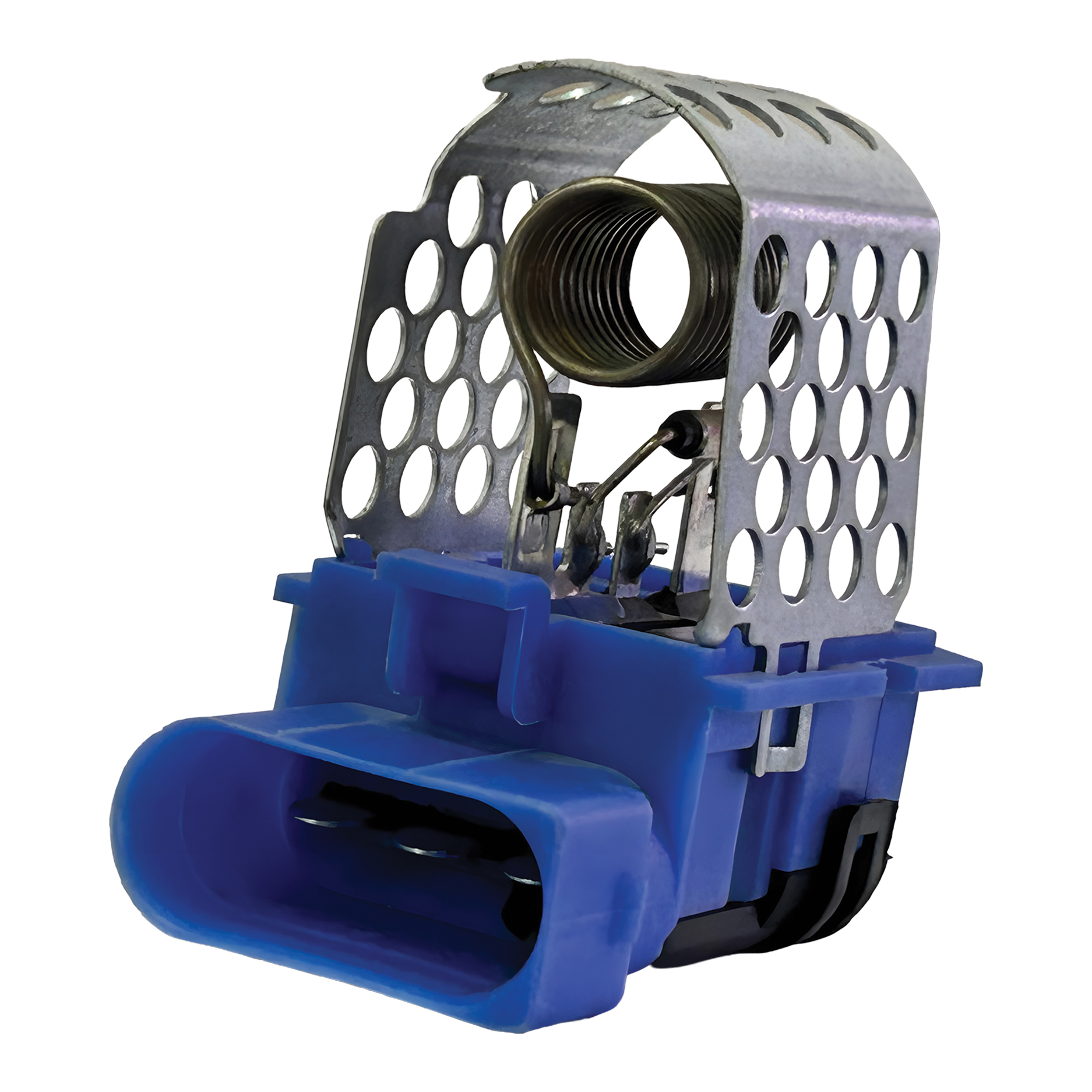

3 and 4-speed Resistors for Blowers / HVACs

Specifications

Electrical

Resistance: R1: 1.528+-10%, R2: 0.500+-10%and R1: 0.148+-10% ohms and Fusing@12V DC: LO speed: 5.0A, 220sec max, ML speed: 13.5A, 120sec max and MH: 20.5A, 60sec max -

Climate

Reference Standard

Customer-Specific Products. Not for open sale—

Usage

Used in blowers/HVACs

Life

The Resistor Blower is a safety device, and it is meant to fuse itself to safeguard the vehicle. The fusing is not considered a failure of the resistor.

Mechanical
Chassis Mounting—on the body of the blower
To be placed inside the airflow path for continuous air cooling—

Disclaimer: The specifications mentioned are subject to change and are not binding on us.
Please reconfirm with us for the latest specifications.
